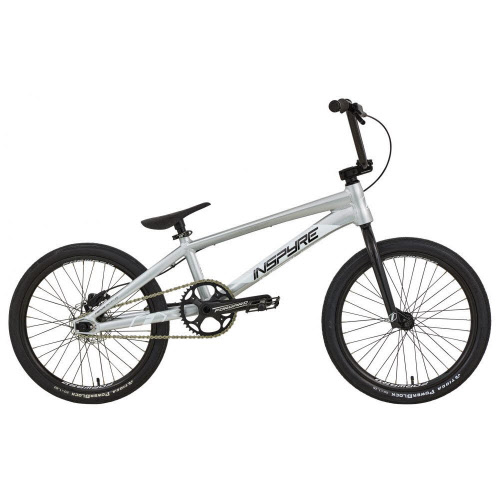

BMX INSPYRE EVO DISK 2026
This bike has been designed to give riders every advantage they need to progress and refine their skills on the track. It’s built for intermediate riders looking for more dynamism and performance.
This year, Inspyre expands its EVO DISK range with two new colorways, offering even more choice and style for passionate riders. The Evo complete bike range comes in 7 sizes, from Junior to Cruiser. For each size, components are carefully selected to match the rider’s build and provide maximum support on the track.
At its core, the bike is built around the Inspyre Bicycles Evo Disk frame, featuring all the characteristics of a high-end BMX Race frame. Constructed from 6061-T6 hydroformed aluminum tubing, it delivers an excellent weight to performance ratio. Its geometry strikes the perfect balance between stability and responsiveness. The frame integrates Inspyre Bicycles Swell dropouts, which not only add rear-end stiffness but also accommodate the Pride Racing disc brake mount while ensuring perfect chain tension.
The Evo Disk is equipped with top-quality aftermarket components. Highlights include the Forward Joyride 6061-T6 aluminum crankset and the renowned Tioga Powerblock tires, delivering both speed and responsiveness.
This is a bike ready to line up for races but most importantly, to win them.
FEATURES
- INSPYRE BICYCLES® frame, 6061-T6 aluminum
- Alhonga disc brake kit with short lever
- TIOGA® Powerblock tires
- Semi-integrated (ZS) or integrated (IS) headset, depending on the bike size
- Swell rear dropouts with integrated chain tensioners
- 100% sealed bearings
- BSA bottom bracket
- Inspyre Evo hubs with 3-pawl engagement system, 100% sealed bearings
- KMC® Z-1 Narrow chain
SPECIFICATIONS
| PARTS |
PRO XL |
| FRAME |
Inspyre Evo Disk Pro XL - 21.25’’- Premium Alu 6061-T6 - Hydroformed tubes - Triple butted - Swell forged 3D dropouts |
| FORK |
Inspyre Evo - 100% Chromoly - 1-1/8’’ Steerer tubing - Tapered legs |
| HEADSET |
Tapered Integrated - Sealed bearings - IS42 | IS52 |
| HANDLEBAR |
Inspyre Evo - 100% Crmo - 22.2mm - 8’’ x 28.5’’ - BS: 7° / US: 1.5° |
| GRIPS |
Forward Lock On 130mm - Kraton |
| STEM |
Forward - Top Load - Aluminum 6061-T6 - 50mm |
| BRAKE LEVER |
Alhonga Short Lever |
| BRAKE CALIPER |
Alhonga hydraulic |
| DISC |
Forward 140mm disc |
| BOTTOM BRACKET |
FORWARD® external BSA - Sealed bearings |
| CRANKSET |
Forward Joyride AM - 2 pieces - 4-bolt (104 BCD) - 175mm |
| PEDALS |
Aluminum 9/16 |
| SPROCKET |
4-bolt Aluminum 43T |
| CHAIN |
KMC® Z-1 - 1/2’’ x 3/32’’ |
| COG |
16T - 1/2’’ x 3/32’’ - Chromoly |
| FRONT RIM |
Forward Joyride - Aluminum 36H - Double-wall |
| REAR RIM |
Forward Joyride - Aluminum 36H - Double-wall |
| FRONT TIRE |
Tioga Powerblock - 20x1.75’’ |
| REAR TIRE |
Tioga Powerblock - 20x1.75’’ |
| FRONT HUB |
Inspyre Evo - Aluminum 36H - 10mm - 100% Sealed bearings - Female bolts |
| REAR HUB |
Inspyre Evo Disc - Aluminum Cassette 36H - 10mm - 100% Sealed bearings - 120 engagement points - 3 pawls system - Female bolts |
| SPOKES |
Stainless 14G |
| NIPPLES |
Brass 14G |
| SEAT |
PC Combo 27.2mm |
| SEAT CLAMP |
Forward AM 31.8mm |
| TENSIONERS |
Integrated Swell Dropouts |
| WEIGHT |
9.34kg |
