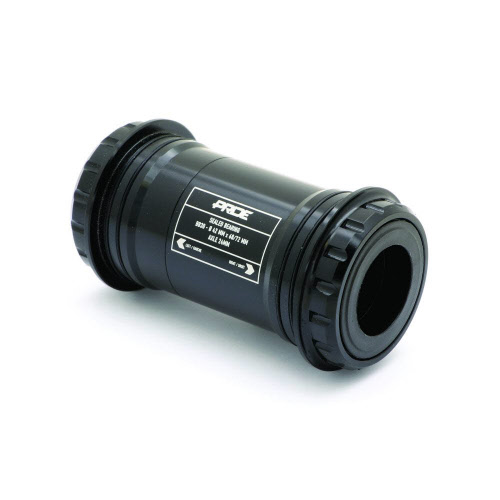

The Pride Racing Interlock BB30-24mm bottom bracket features two CNC machined cups made of 7075 Aluminum, anodized for a perfect finish. It's laser-engraved with all the technical information of the bracket and equipped with sealed cartridge bearings to ensure proper installation and smooth pedaling. It is designed to fit a 24mm crankset into a frame accommodating a Pressfit BB30 type bottom bracket with an inner frame diameter of 42mm and a width of 68/72mm.

Thanks to its "Interlock" design, this bottom bracket is ideal if you don't have the tool to press fit bottom brackets into your frame. Simply position the two cups on each side of the frame and screw the two parts together using the same wrenches as for mounting Euro/BSA bottom brackets (SHIMANO Hollowtech II type wrench). All that's left is to tighten the assembly securely.

SPECIFICATIONS :

• Bottom Bracket Type : BB30

• Installation : Threaded

• Axle Diameter : 24mm

• Inner Frame Diameter : 42mm

• Width : 68/72mm

• Bearings : 6805-2RS

• Material : 7075 Aluminum

• Weight : 129g
