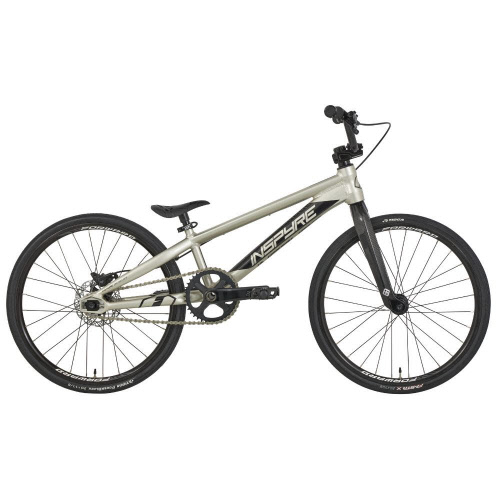

Bmx Inspyre Evo-C Disk Junior 2025

  • januar 2025


Introducing the new vintage of the Inspyre Evo-C Disk with its 'Champagne' color and glittery reflections. There are some exciting updates for the 2025 version, including the addition of the new Pride Matrix fork from Pro sizes and up, as well as the new SD-B85 crankset.

The Evo-C complete bike range comes in 7 sizes, from Junior to Pro Cruiser. For each size, the components are carefully selected to best match the rider's body type, providing maximum support on the track.

The bike is built around the Inspyre Bicycles® Evo-C Disk frame, featuring all the qualities of a high-end aftermarket frame. A carbon fork enhances performance, rigidity, and responsiveness. Its hydroformed 6061-T6 aluminum tubes ensure an excellent weight-to-performance ratio. The geometry strikes a balance between stability and reactivity. The frame also incorporates Inspyre Bicycles® Swell dropouts, which not only add rear-end rigidity but also integrate the Pride Racing® disc brake mount while ensuring perfect chain tension.

In the Junior & Expert versions, the Evo-C is equipped with the Pride Racing® Apex fork, designed with a structure combining carbon fiber and aluminum. Its Toray® carbon fiber legs provide a lively and responsive feel.

From the Expert XL to Pro Cruiser versions, the Evo-C features the new Pride Racing Matrix fork. Its aluminum steerer tube and Toray carbon fiber structure offer exceptional performance.

On the component side, the arrival of the SD-B85 crankset upgrades the bike for even greater performance. It retains the Pride Racing headset starting from the Pro sizes, the Forward Joyride V2 hubs with 100% sealed bearings. The rear hub features a 6-pawl system with 150 points of engagement. The bike is also fitted with Tioga tires, with the Fastr X on the front and Powerblock on the rear, a highly efficient combo that delivers great traction and responsiveness. The Evo-C Disk is competition-ready. Once you receive it, straight out of the box, all that's left to do is mount the handlebars, insert and fasten the front wheel, check the torque on all bolts, inflate the tires, and you're ready to race.


FEATURES

  • INSPYRE BICYCLES® frame, 6061-T6 aluminum

  • PRIDE RACING® carbon fork: Apex or Matrix depending on the bike size

  • SHIMANO® MT401/410 disc brake kit

  • TIOGA FastrX front tire / TIOGA Powerblock rear tire

  • PRIDE RACING integrated headset (IS), depending on the bike size

  • Swell rear dropouts with integrated chain tensioners

  • 100% sealed bearings

  • FORWARD Joyride V2 rear hub – 150 points of engagement – 6-pawl system – 100% sealed bearings

  • KMC Z-1 chain


SPECIFICATIONS

PARTS

JUNIOR

FRAME

Inspyre Evo-C Disk Junior 18.75’’- Premium Alu 6061-T6 - Hydroformed tubes - Triple butted - Swell forged 3D dropouts

FORK

Pride Racing APEX - Pivot 1-1/8’’ - 10mm

HEADSET

Semi Integrated - Sealed bearings - ZS44 | ZS44

HANDLEBAR

Inspyre Evo - Aluminium - 22.2mm - 4.25’’ x 22’’ - BS: 7° / US: 2°

GRIPS

Forward Lock On 95mm - Kraton

STEM

Forward - Top Load - Aluminum 6061-T6 - 40mm

BRAKE LEVER

Shimano BL-MT401 - Right lever - Black

BRAKE CALIPER

Shimano BR-MT410 - Rear caliper - Post Mount - Resin pads

DISC

Forward 140mm disc

BOTTOM BRACKET

FORWARD® external BSA - Sealed bearings

CRANKSET

SD B85 - 2 pieces - 4-bolt (104 BCD) - 150mm

PEDALS

Aluminum Mini 9/16

SPROCKET

4-bolt Aluminum 38T

CHAIN

KMC® Z-1 - 1/2’’ x 3/32’’

COG

16T - 1/2’’ x 3/32’’ - Chromoly

FRONT RIM

Forward Joyride - Aluminum 28H - Double-wall

REAR RIM

Forward Joyride - Aluminum 28H - Double-wall

FRONT TIRE

Tioga Fastr X - 20x1-1/8"

REAR TIRE

Tioga Powerblock - 20x1-1/8’’

FRONT HUB

Forward Joyride V2 - Aluminum 28H - 10mm - 100% Sealed bearings - Female bolts

REAR HUB

Forward Joyride V2 Disc - Aluminum Cassette 28H - 10mm - 100% Sealed bearings - 150 engagement points - 6-pawl system - Female bolts

SPOKES

Stainless 14G

NIPPLES

Brass 14G

SEAT

Combo Saddle Nylon Seatpost - Seat: 168x108mm - Seatpost: 162x22.2mm

SEAT CLAMP

Forward AM 25.4mm

TENSIONERS

Integrated Swell Dropouts

WEIGHT

To be confirmed
