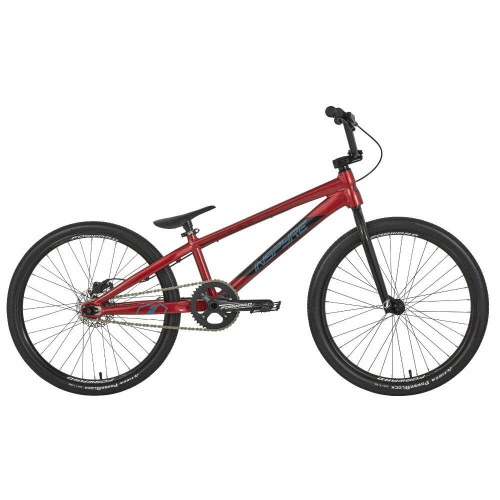

The new 2025 Evo Disk features a fresh "Cherry Red" color with beautiful highlights. This year, it comes equipped with an Alhonga hydraulic brake kit with a short lever for perfect braking control, Inspyre hubs with sealed bearings, and a 3-pawl engagement system. Notably, the wheels have been upgraded to 20x1-3/8" for the Expert XL size.
This bike was designed to give riders the best tools to progress and perfect their skills on the track. It is intended for intermediate riders looking for more responsiveness and performance.
The Evo complete bike range comes in 7 sizes, from Junior to Cruiser. For each bike size, components are selected to best match the rider's body type, providing maximum support on the track.
The bike is built around the Inspyre Bicycles® Evo Disk frame, which incorporates all the features of a high-end BMX Race frame. Hydroformed 6061-T6 aluminum tubes guarantee an excellent weight-to-performance ratio. Its geometry allows it to be both stable and responsive. The frame features Inspyre Bicycles® Swell dropouts, which not only add rigidity to the rear of the frame but also allow for the integration of the Pride Racing® disc brake mount while ensuring perfect chain tension.
The Evo Disk is composed of high-end aftermarket parts. It includes the Forward® Joyride crankset in 6061-T6 aluminum and the excellent Tioga Powerblock tires that provide great traction and responsiveness.
This is a bike ready to race and win.
FEATURES
-
INSPYRE BICYCLES® frame, 6061-T6 aluminum
-
Alhonga disc brake kit with short lever
-
TIOGA® Powerblock tires
-
Semi-integrated (ZS) or integrated (IS) headset, depending on the bike size
-
Swell rear dropouts with integrated chain tensioners
-
100% sealed bearings
-
BSA bottom bracket
-
Inspyre Evo hubs with 3-pawl engagement system, 100% sealed bearings
-
KMC® Z-1 Narrow chain
SPECIFICATIONS
|
PARTS |
CRUISER |
|
FRAME |
Inspyre Evo Disk Pro XXL - 21.85’’- Premium Alu 6061-T6 - Hydroformed tubes - Triple butted - Swell forged 3D dropouts |
|
FORK |
Inspyre Evo - 100% Chromoly - 1-1/8’’ Steerer tubing - Tapered legs |
|
HEADSET |
Tapered Integrated - Sealed bearings - IS42 | IS52 |
|
HANDLEBAR |
Inspyre Evo - 100% Crmo - 22.2mm - 5’’ x 27.5’’ - BS: 7° / US: 1.5° |
|
GRIPS |
Forward Lock On 130mm - Kraton |
|
STEM |
Forward - Top Load - Aluminum 6061-T6 - 50mm |
|
BRAKE LEVER |
Alhonga Short Lever |
|
BRAKE CALIPER |
Alhonga hydraulic |
|
DISC |
Forward 140mm disc |
|
BOTTOM BRACKET |
FORWARD® external BSA - Sealed bearings |
|
CRANKSET |
Forward Joyride AM - 2 pieces - 4-bolt (104 BCD) - 180mm |
|
PEDALS |
Aluminum 9/16 |
|
SPROCKET |
4-bolt Aluminum 41T |
|
CHAIN |
KMC® Z-1 - 1/2’’ x 3/32’’ |
|
COG |
18T - 1/2’’ x 3/32’’ - Chromoly |
|
FRONT RIM |
Forward Joyride - Aluminum 36H - Double-wall |
|
REAR RIM |
Forward Joyride - Aluminum 36H - Double-wall |
|
FRONT TIRE |
Tioga Powerblock - 24x1.75’’ |
|
REAR TIRE |
Tioga Powerblock - 24x1.60’’ |
|
FRONT HUB |
Inspyre Evo - Aluminum 36H - 10mm - 100% Sealed bearings - Female bolts |
|
REAR HUB |
Inspyre Evo Disc - Aluminum Cassette 36H - 10mm - 100% Sealed bearings - 120 engagement points - 3 pawls system - Female bolts |
|
SPOKES |
Stainless 14G |
|
NIPPLES |
Brass 14G |
|
SEAT |
Combo Saddle Nylon Seatpost - Seat: 214x113mm - Seatpost: 162x27.2mm |
|
SEAT CLAMP |
Forward AM 31.8mm |
|
TENSIONERS |
Integrated Swell Dropouts |
|
WEIGHT |
To be confirmed |
