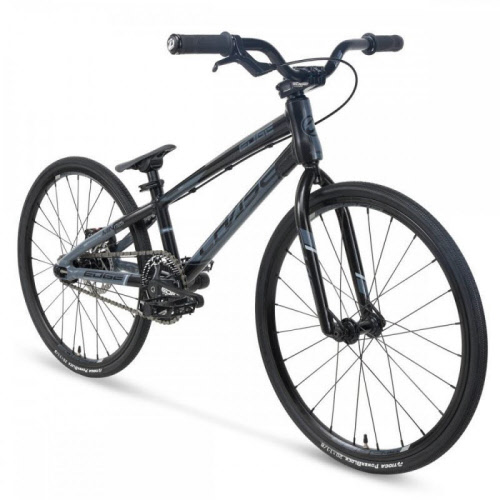

CHASE EDGE Race BMX MINI black 2025

  • 5-7 Tagen

The all new CHASE Edge is a race ready BMX machine, ideal for riders ready to get serious about BMX racing and take it to the next level.
Just when you didn't think it was possible, the new Edge has been improved, as now it is equipped with Shimano Hydraulic disc brakes (Junior size & above), all new Chase 24mm 2 piece Alloy Cranks (Expert XL & Above) , updated gearing and crank sizes, a 2 tone paint and graphics design, and an closed rear dropout system with integrated chain tensioner system,. The Edge frame also features hydroformed, triple butted, 6061 aluminum tubes with an integrated head tube. Other featured parts on the Edge include 4130 chromoly fork and handlebars, double wall rims with triple engagement rear cassette rear hub, and TIOGA tires. The combination of all these components arguably makes the CHASE Edge one of the most advanced race BMX bikes available today.

FRAME: CHASE Edge Mini 17.25″ Top Tube, Triple Butted Hydroformed 6061 T6 Alloy, Enclosed rear dropouts, Integrated Chain tensioner system
FORK: CHASE Edge Mini, Full Cr-mo, 1″ Steer Tube
STEM: CHASE Edge 40mm
HANDLEBAR: CHASE Edge 2.25″
HEADSET: Integrated Sealed Bearing
CHAINRING: INSIGHT 36T 5 Bolts BCD 110mm
CRANKSET: CHASE Edge Alloy 140mm, 113mm squared axle BB
HUBS: CHASE Edge Mini 3/8″ Axle, Sealed Bearings, Steel Cassette Body, Triple precise Rear Hub Clutch System with ISO disc brake standard (3 Pawls at Triple Angle Engagement for 24T Ratchets), 16T cog
RIMS: CHASE Edge 118 Double Wall 20″x1-1/8″, 24H Front and 28H Rear
TIRES: TIOGA PowerBlock 20″x1-1/8″ Front and Rear
BRAKES: Mechanical, 140mm Disc Rotor, Shimano B01S Compatible Pads, Lock Disc Adaptor
SEAT: INSIGHT Mini Pivotal


RECOMMENDED SIZE: 1m10 – 1m25
WEIGHT: 7.59Kg without pedal
