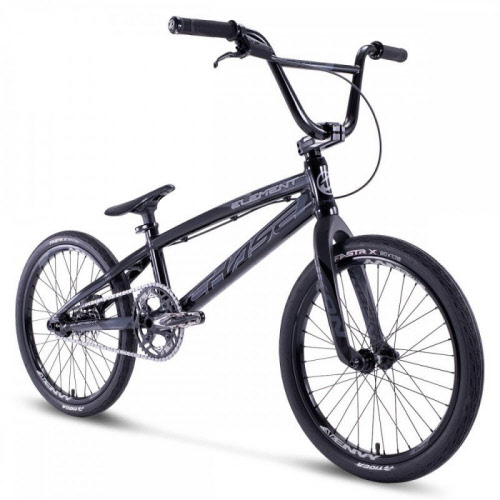

CHASE race bmx ELEMENT PRO racing 2025

  • 5-7 Tagen
  • Mehr Details ...

SPECIFICATIONS :

FRAME
Chase Element Pro 20.5" Top Tube 7005 T6 Alloy, Integrated Head Tube, 1-1/8", Close Drop Out
FORK
Ikon Pro 20" Carbon, Alloy 1-1/8" Steer Tube, 20mm Drop Out with Adaptor 3/8" Axle, Alloy Top Cap
HEADSET
Integrated IS 42/42 1-1/8", Sealed Bearing
HANDLEBAR
Chase Element Cromo 7.5", Diameter 31.8mm, Rise, 28" Wide, 10° Back Sweep & 2° Up Sweep
GRIPS
Insight C.O.G.S 145mm Alloy Clamps Laser Etched Logo, PVC End Plug
STEM
Chase Element 1-1/8" Steer Tube, Diameter 31.8mmmm, Length 50mm 6061 T6 Alloy CNC Laser Etched Logo
BB
Press Fit 68/73mm Cartridge Bearings
CHAINRING
Insight 43 Tooth 4 Bolt 104mm 1/2"x3/32" 5mm Alloy Ring
CRANK
Excess LSP 2 Piece Crank 175mm Alloy Arm, 4 Bolt Spider, Cr-mo Pedal Inserts, Alloy Chain Ring Bolts / Nuts
PEDAL
Nylon Platform Pedal 9/16"
CHAIN
Nylon Platform Pedal 9/16"
COG
16 teeth
FRONT HUB
Chase Element 3/8" Bolts, 32H, Sealed Bearing
REAR HUB
Chase Element Pro ISO Hub, 32H, Sealed Bearing, 3/8" Bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets
SPOKES
Front 190mm, Rear 186mm, 14 Gauge, Steel
NIPPLES
Brass 14Gx5/8"
RIMS
Sun Rims Alloy Envy Lite Front 32H 20"x1.5" No Brake Surface Schrader Valve
FRONT TIRE
Tioga Fastr X 20"x1.85" 60 TPI Wire Bead
REAR TIRE
Tioga Fastr X 20"x1.65" 60 TPI Wire Bead
TUBES
20''x1.5"-1.75" Schrader Valve
BRAKES
Tektro HD-M280 Hydraulic, Resin Pads, 120mm Rotor
SADDLE
ELEVN PC Pivotal
SEAT POST
CHASE Aero Pivotal 27.2x260mm Alloy
SEAT CLAMP
Chase Aero QR Alloy 31.8mm
CHAIN TENSIONNER
Integrated Built-In With New Lock Disc Adaptor


Mounting with Shimano XT pedals are for photographic purposes only. The bikes come with nylon platform pedals.

IMPORTANT NOTE: The washers supplied with the EXCESS crank set must be fitted between the pedal and the crank. No after-sales service will be accepted if the washers have not been fitted as of the 1st use.
